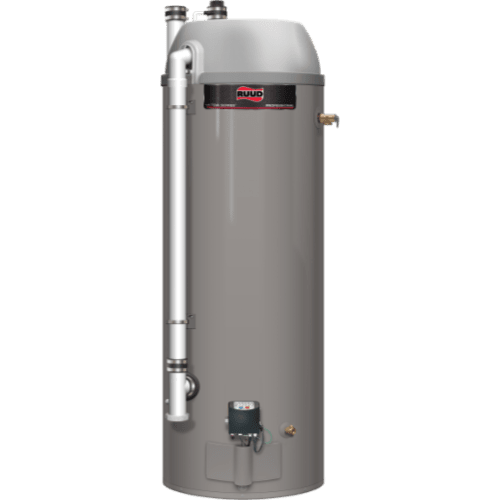

Ruud High Efficiency Condensing Power Direct Vent Gas Water Heater
Professional Ultra™ High Efficiency Condensing Power Direct Vent gas water heaters are a perfect choice when indoor air quality is a concern
Efficiency
- .75 – .83 UEF
Performance
- FHR: 68 – 87 gallons for natural and LP gas, depending on model
- Recovery: 43.6 to 48.5 GPH at a 90° F rise, depending on model
Self-Diagnostic System
- Integrated system control for easy installation and service
- Diagnostic system control can be replaced without draining the water heater
Low Emissions
- Eco-friendly burner, low NOx design
Features
- Power direct vents are an ideal choice when either indoor air quality or negative air pressure are concerns
- Two-pipe system: one pipe pulls in outside air for combustion and the other exhausts combustion gases
- 120 VAC, 60Hz, induced draft blower
- New whisper quiet blower
Innovative Technology
- Proven center flue design with submerged coil type condensing heat exchanger
- Heat exchanger is porcelain coated inside and out for increased product life
Flammable Vapor Detection System
Innovative
- FVIR compliant protective
- Control system that disables the heater in the presence of flammable vapor accumulation
Flexible Venting Options
- Long venting lengths up to 60 feet
- Use 2 or 3 inch diameter PVC, ABS, or CPVC vent pipe options. (In Canada ULC S636 PVC and CPVC must be used.)
- Vertical or horizontal termination
- Concentric vent kit available
Longer Life
- Dual anode rods protect the tank from corrosion
High Altitude Compliant
- Models are certified for applications up to 9,000 feet above sea level
Plus…
- Enhanced-flow brass drain valve
- Temperature and pressure relief valve included
- Low lead compliant
- Durable silicon nitride igniter (HSI)
- Inlet tube with diffuser enhances heat transfer
- Front access to condensate trap and vent pipe
- Condensate neutralizer option
- Standard replacement parts
