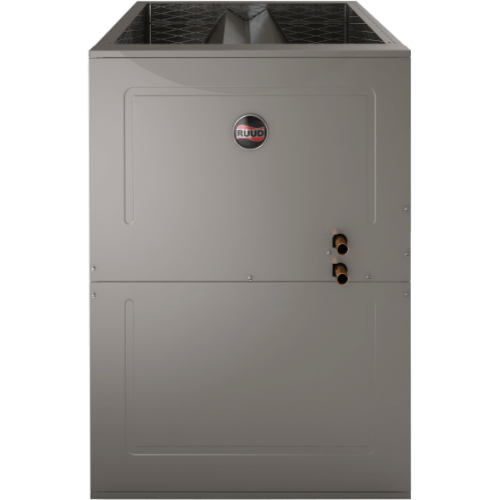

Ruud RWMV Air Handler

Ruud RWMV Air Handler.

Hydronic Air Handler Features

  • Low profile 34-inch design is lighter, easier to handle and leaves room for optional accessories
  • Left or right side electric connections
  • Integrated control board features diagnostics, manages all operational functions and provides hookups for humidifier and electronic air cleaner
  • An insulated blower compartment makes it one of the quietest hydronic air handlers on the market today
  • Pre-paint galvanized steel cabinet
  • Molded permanent filter(s)
  • Transformer and control fuse protection
  • Solid bottom is standard
  • A variety of cooling coils and plenums designed to use with the Hydronic Air Handler are available as optional accessories for air conditioning models
  • Stainless steel water pump
  • Field covertiable for vertical downflow, horizontal left hand, or right hand air supply
  • Energy efficient ECM motor which slowly ramps up speed for quiet and finely tuned operation to maintain constant CFM
  • Factory installed indoor coil
  • Pump control knob allows adjustment of the differential between the inlet water temperature and outlet air temperature.

Tankless Water Heater

  • Industry best! Minimum flow rate of .26 GPM, minimum activation flow rate of .40 GPM
  • ENERGY STAR® rated models available
  • Next generation burner technology
  • UMC-117 remote control and 10 ft. of thermostat wire is included
  • EZ-Link™ cable available for high demand applications to connect two tankless units to operate as one
  • High-altitude capability – up to 8,400 ft. elevation above sea level (no chip required)
  • Intelligent electronic controls designed to increase energy efficiency and safety
  • Self Diagnostic System
  • Rheem Exclusive! Built-in Condensate Neutralizer for safe disposal of condensate.
  • Rheem Exclusive! Overheat Film Wrap Safetly shuts down the heater at unsafe temperatures.
  • All models are compatible with 1/2″ gas line.
  • Condensing models vent with PVC for easier installations.

Specifications

  • Integrated Heating and Water Heating
  • Hydronic heating coil
