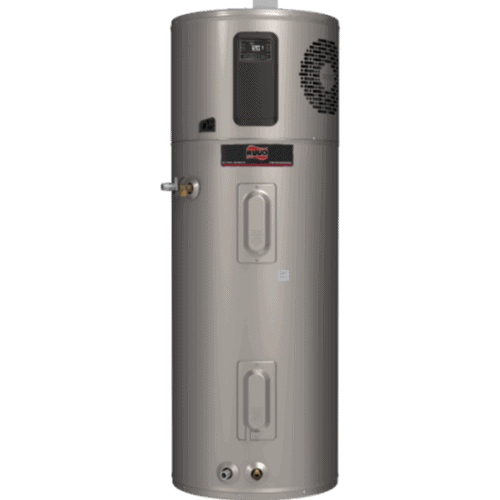

Ruud Ultra™ Gen 5 Hybrid Water Heater

Ruud Ultra™ Gen 5 Hybrid Water Heater.

Efficiency

  • Up to 4.07 UEF reduces  operating cost
  • Title 24 Compliant (JA13 Ready)
  • 4x the efficiency of a standard electric tank
  • Energy Star® rated

Performance

  • Delivers hot water faster than most standard electric water heaters
  • Ambient operating range: 37-145º F offering more days of heat pump operation annually

Easy Installation

  • 0″ Clearance requirement on sides
  • Condensate connection on front of heater so can be installed against a wall
  • Easy access side connections
  • Quick access to electrical junction box
  • Easily replaces a standard electric water heater

Integration

  • LED Screen with built-in water sensor alert with audible alarm
  • Integrated EcoNet® WiFi-connected technology and free mobile app gives users control over water heater, allowing for customizable temperature, vacation settings, energy savings and system monitoring at home or away

Operation Modes

  • Energy Saver
  • Heat Pump
  • High Demand
  • Electric
  • Vacation/Away: 2-28 days (or placed on hold indefinitely)

Plus…

  • Available in 30 and 15 AMPs
  • Premium grade anode rod with resistor extends the life of the tank
  • 3/4″ NPT water inlet and outlet; 3/4″ condensate drain connections
  • Incoloy stainless steel resistor elements
  • Dry-fire protection
  • Easy access, top mounted washable filter
  • 2″ Non-CFC foam insulation
  • Enhanced flow brass drain valve
  • Temperature and pressure relief valve installed
  • Design certified to NSF/ANSI 372
